HDMI over CAT5E / CAT6 Extender Wall Plate (Pair) - Single Port (1P) - White

Be the first to review this product

Availability: In stock.

$40.00
Add Items to Cart:
OR

Quick Overview

Untitled document

The problems with running HDMI cables in-wall is that the in-wall cables tend to be thicker and harder to work with, some equipment can have range limits shorter than what you require and overall it can get a little expensive.  The simple solution is to transmit your HDMI signals over CAT5 or Cat6 cables.

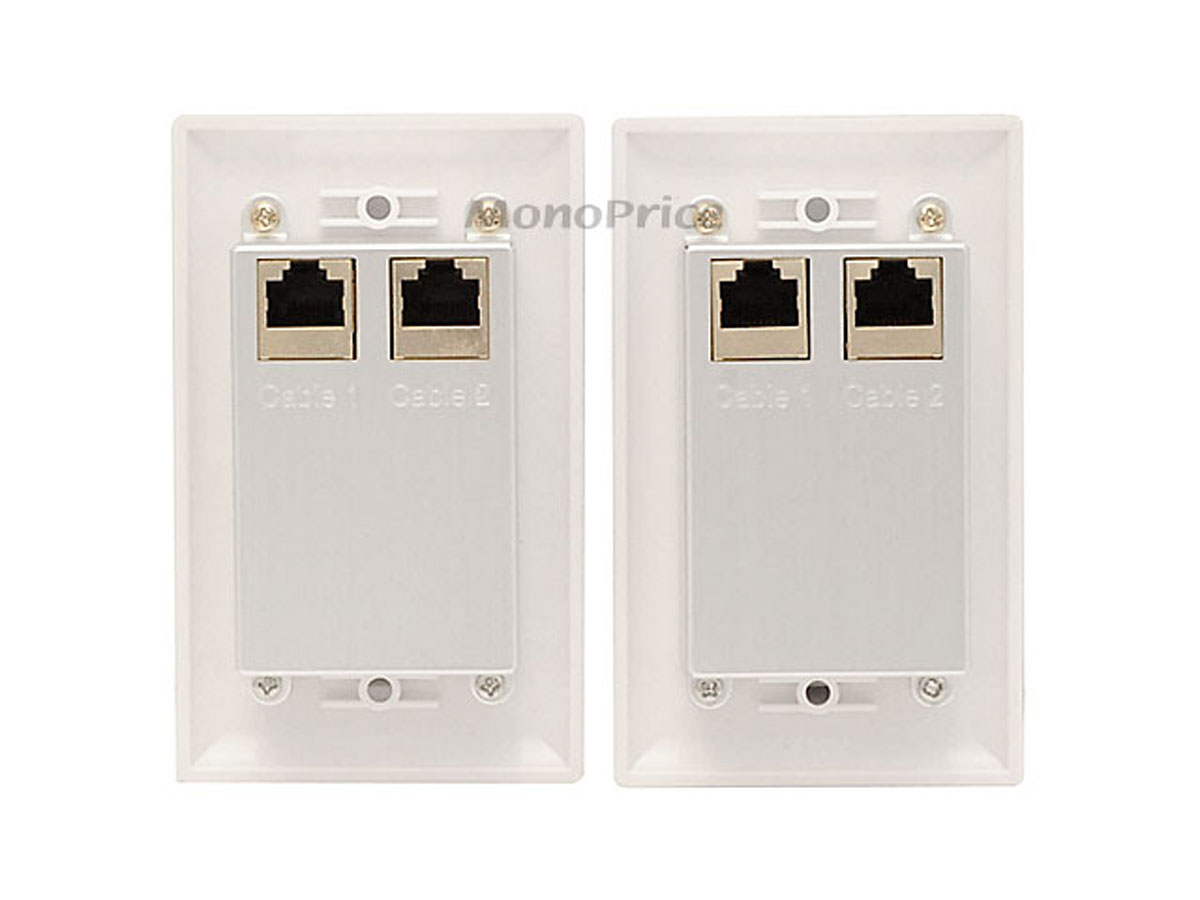

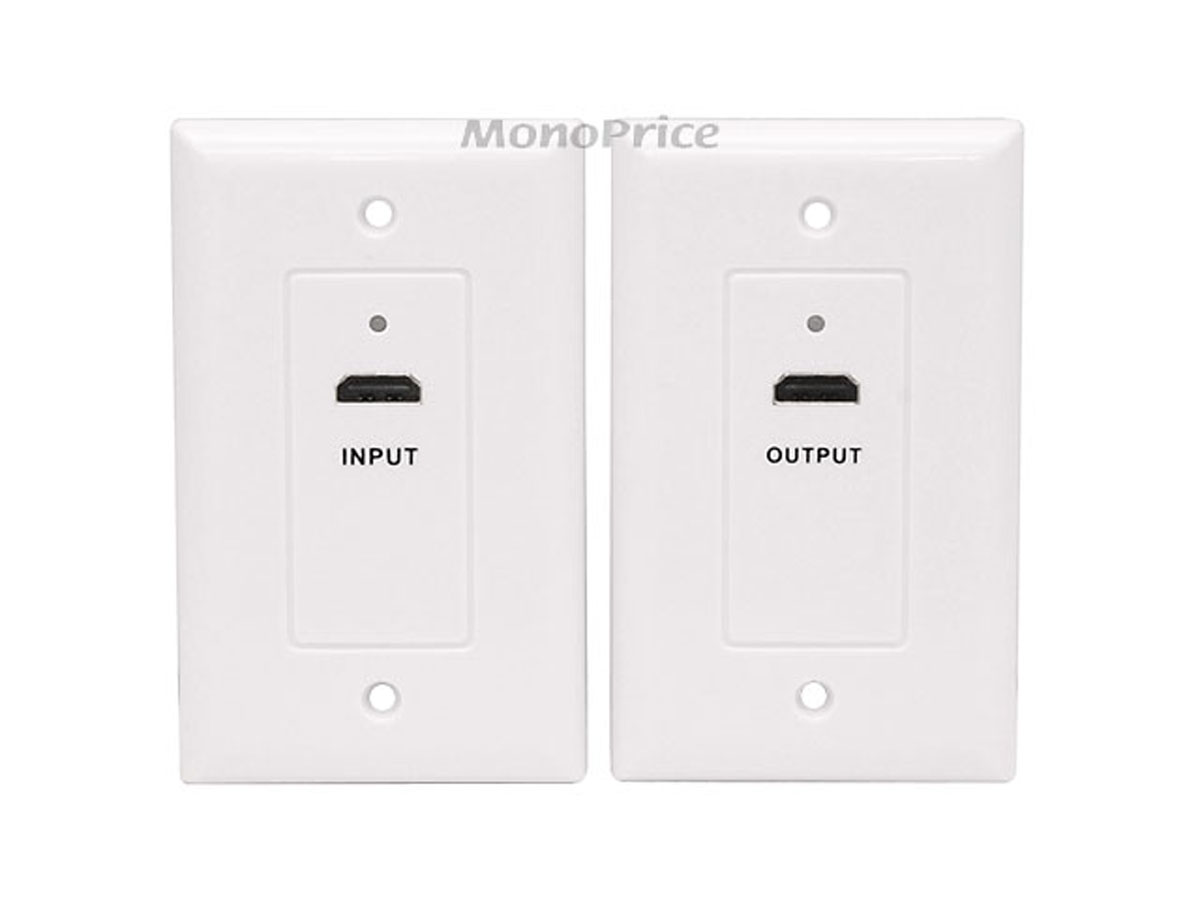

Monoprice delivers you an HDMI over CAT5/6 cable solution in a neat and tidy wall plate configuration.  These compact wall plate units utilize a pair of CAT5/6 cables and deliver pure, rich high definition audio and video.  Installation couldn't be simpler.

Untitled document

The problems with running HDMI cables in-wall is that the in-wall cables tend to be thicker and harder to work with, some equipment can have range limits shorter than what you require and overall it can get a little expensive.  The simple solution is to transmit your HDMI signals over CAT5 or Cat6 cables.
Monoprice delivers you an HDMI over CAT5/6 cable solution in a neat and tidy wall plate configuration.  These compact wall plate units utilize a pair of CAT5/6 cables and deliver pure, rich high definition audio and video.  Installation couldn't be simpler.

  • Bandwidth:  165Mhz
  • Support: HDMI 1.3, DVI 1.0, HDCP 1.1
  • Video Format Supported:  1080p/1080i/720p/720i/480p/576i/480i
  • Transmission Distance:  (results can vary from one set up to another)
  • Solid Cat6 STP 23AWG  -  28m @ 1080p
  • Solid Cat6 UTP 23AWG  -  27m @ 1080p
  • Solid Cat5e STP 23AWG  -  21m @ 1080p
  • Solid Cat5e UTP 23AWG  -  21m @ 1080p
  • Size:  114.5mm x 70mm x 29.5mm
  • Weight:  0.200Kg
  • Power Consumption:  10W (max)
  • Operating Temperature:  0 to 70 degrees Celsius.
  • Operating Humidity:  10% to 85% RH
  • Storage Temperature:  0 to 80 degrees Celsius.
  • Storage Humidity:  5% to 95% RH
  • FCC and CE Approved
