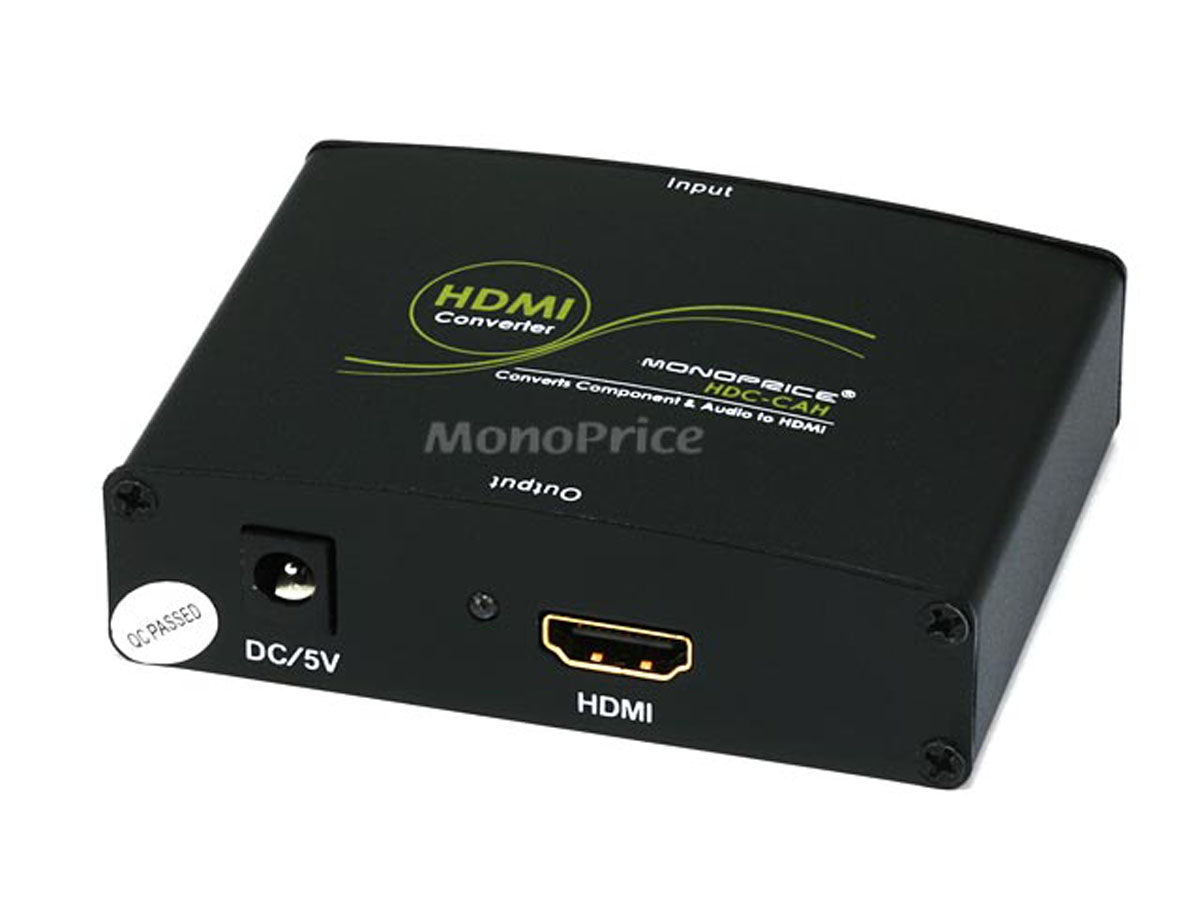

This Component Video + S/PDIF audio to HDMI converter combines your analog high def and/or progressive scan Y, Pb, Pr (Component) video signals with an S/PDIF Digital Coax or Digital Optical Toslink Audio from your source devices and outputs them in HDMI format.  This allows you to connect your legacy Component Video sources to your newer HDMI HDTV's and A/V receivers.  No need to replace the high end video player you bought only a few years ago just because it doesn't support HDMI.  This Analog to Digital converter provides a perfect interim solution until you decide to move on to the next great high def format.

**Note - This device is a format converter, not a scaler.  It will not upscale a standard definition signal into high definition.  It will simply allow a component signal to be plugged into an HDMI port in a situation where no Component inputs are available.

***Note - The model 5971 replaces previous revision 4631 of the same product

Specifications:

• Input Video Signal:  1.2V p-p
• Input DDC Signal:  5 V p-p (TTL)
• Output Video:  HDMI 1.2 + HDCP 1.0/1.1
• HDMI Connector:  Type A (19 pin) female.

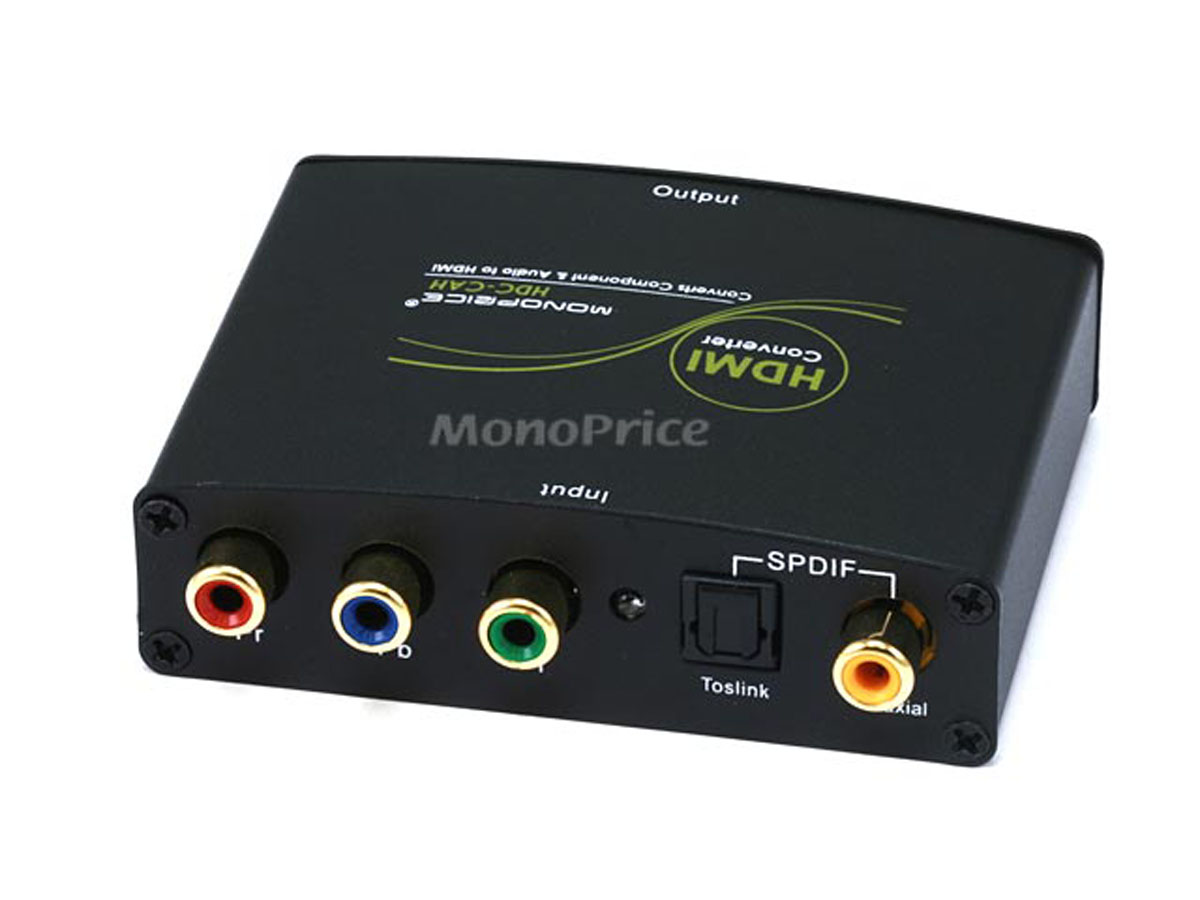

• Video Connector: 3 RCA Component
• Audio Connector: 1 RCA Digital Coax / 1 Digital Optical Toslink
• HDMI Video Amplifier Bandwidth:  1.65Gbps/165Mhz
• Frequency:  Up to 165Mhz
• Supported Resolutions:  480i thru 1080p
• Size:  91mm (w) x 22mm (h) x 75mm (d)
• Shipping Weight:  0.12 Kgs
• Operating Temperature:  0 degree C to 70 degrees C.
• Operating Humidity:  10% to 85% RH (no condensation)
• Storage Temperature:  -10 degrees C to 80 degrees C.
• Storage Humidity:  5% to 90% RH (no condensation)

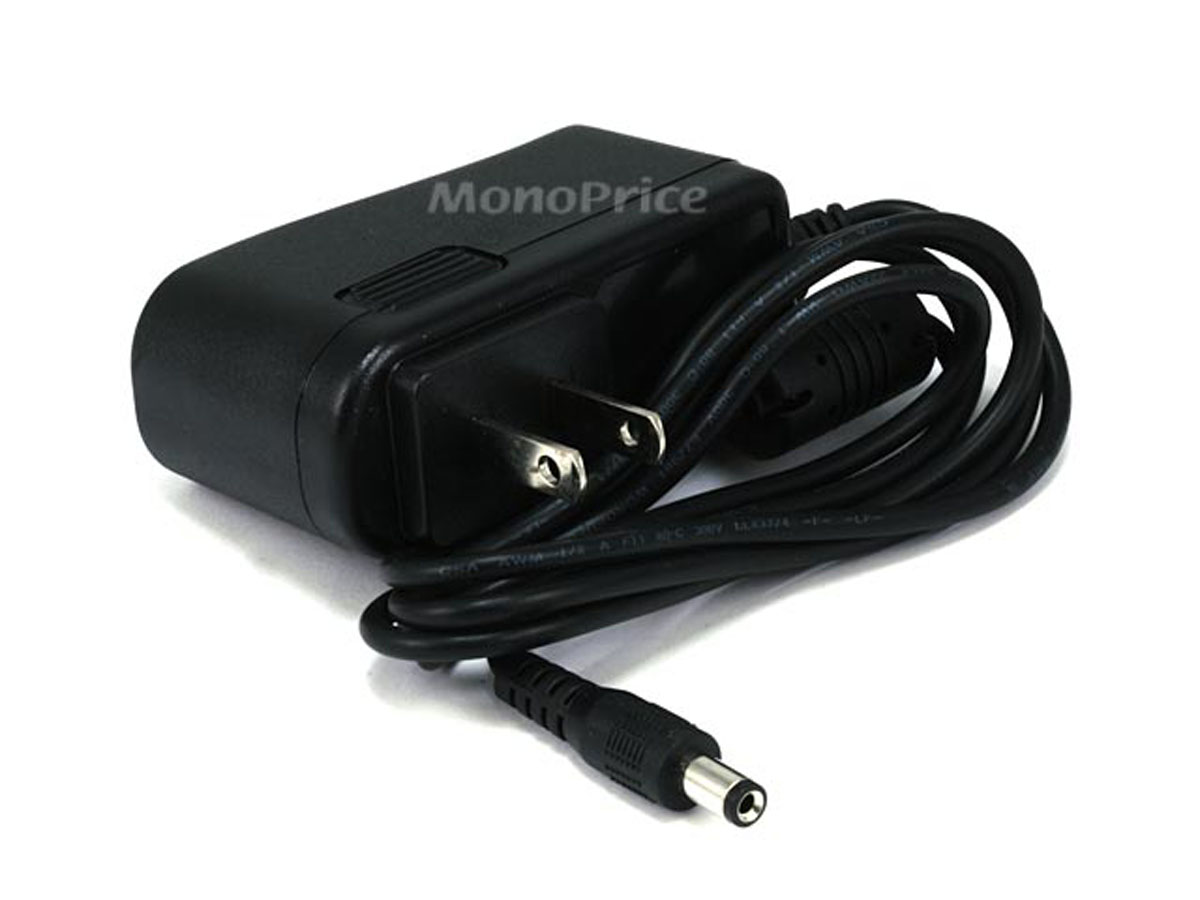

• External Power Supply:  5V DC @ 2A
• Regulatory Approvals:  FCC, CE UL
